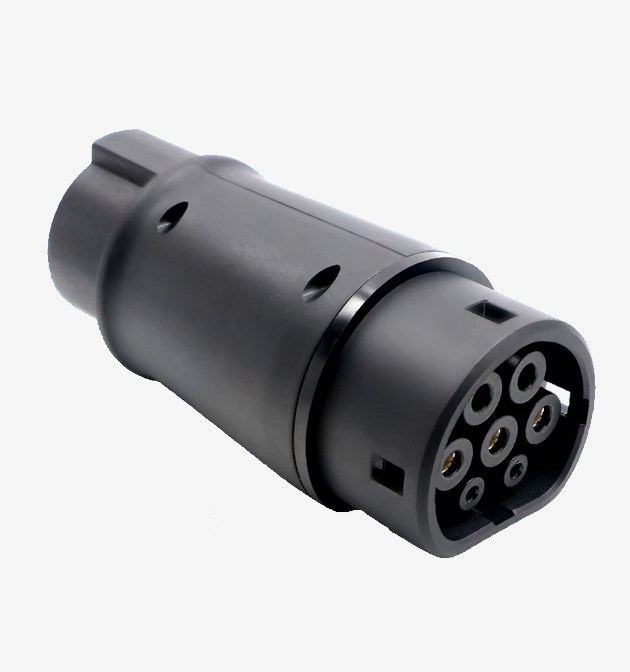

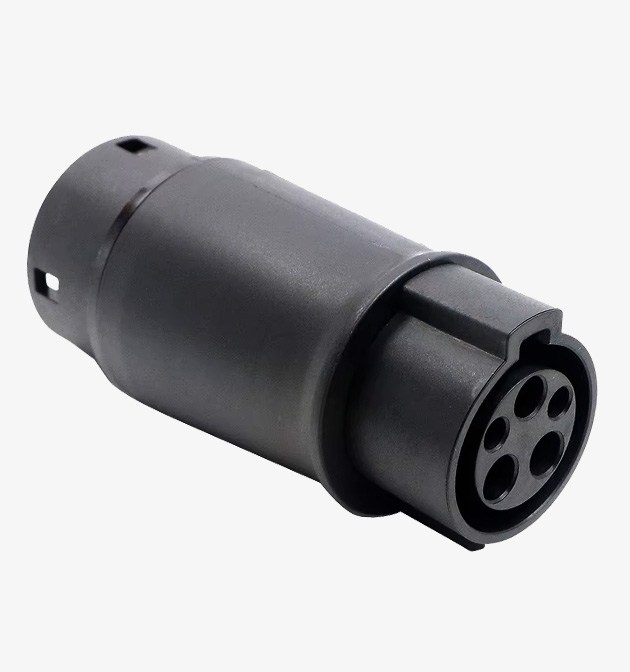

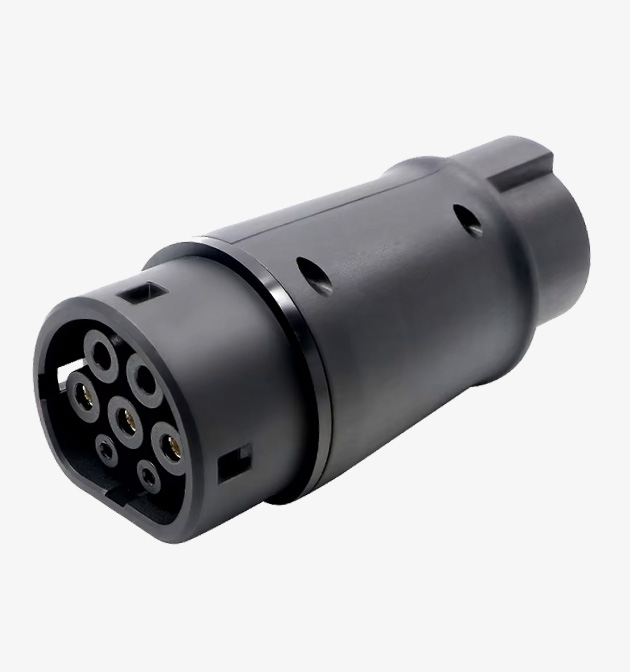

Type 1 to Type 2 EV Charging Adapter – 32A Single Phase

• 1x Type 1 to Type 2 EV Charging Adapter – 32A Single Phase

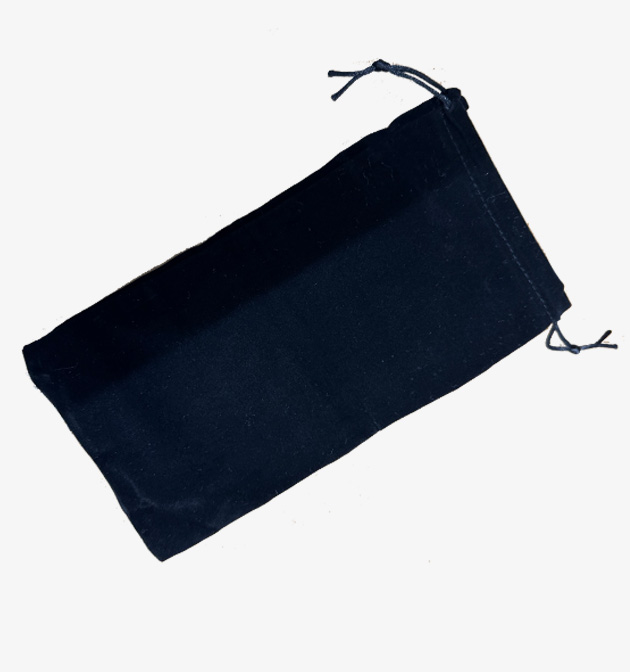

• 1x Flocked Drawstring Storage Bag

All vehicles that use a Type 2 (IEC 62196) inlet are considered compatible by default, unless they fall under the exceptions listed below. This adapter follows the standard Type 1-to-Type 2 configuration:

• Input (Charge Side): Type 1 (J1772) – supports 16A and 32A single-phase only

• Output (Vehicle Side): Type 2 (IEC 62196) – compatible with the vast majority of Type 2 EVs and PHEVs

• Maximum Rating: 32A single-phase AC (a 3-phase option is not possible under the J1772 standard)

🚫 Known Compatibility Exceptions

The following vehicles are not compatible with this adapter:

• All BMW EV and PHEV models

• Early non-European Tesla models

These exceptions are based on verified user reports and manufacturer-specific wiring differences.

If your vehicle is not listed above, it is considered fully compatible.

📩 Unsure? Contact our support team and we’ll confirm compatibility before you order.

Unlike basic adapters, this Type 1 to Type 2 adapter incorporates an internal thermal protection system designed to help protect both the adapter and your charging equipment in the unlikely event of excessive temperatures.

The adapter continuously monitors its internal temperature. If the sensor reaches approximately 90°C, the Control Pilot (CP) circuit is opened, signalling the charging system to safely stop charging. Once the adapter has cooled to approximately 70°C, the CP circuit is restored, allowing charging to resume.

This protection is intended purely as a fail-safe safety feature and is not expected to operate during normal charging. Should the thermal protection ever activate, it is advisable to inspect the charging equipment and connections, as excessive heat is often associated with poor electrical contact or another underlying issue.

Key Features

• Integrated internal temperature monitoring
• CP circuit opens at approximately 90°C
• Charging automatically resumes at approximately 70°C
• Helps protect the adapter and charging equipment from excessive temperatures
• Fully automatic operation with no user intervention required

• Tracked UK & International Shipping – Sent via Royal Mail, DHL or FedEx (costs calculated at checkout).

• Easy Returns – No-hassle returns on all eligible orders.

• Support You Can Count On – Live chat and email support available.

• 2-Year Warranty – Covers manufacturing defects (excludes wear and tear).

📦 Click here for delivery info • Return policy

Quick Connect. Easy Charge.

Attach, plug, and power up in three simple steps.

1. Connect to Cable – Attach the adapter to your Type 1 (J1772) charging cable.

2. Plug into Vehicle – Insert the Type 2 end into your EV’s charging port.

3. Start Charging – Activate the charger. You’re ready to go.

⚠️ Always ensure charging has fully stopped before disconnecting the adapter.

Usage Notice

Before unplugging, always confirm that charging has fully stopped. Remove the adapter with care to avoid unnecessary strain on the connectors or connection points

Charging in Wet Weather

This adapter is designed for everyday outdoor EV charging and can be used in light rain as part of normal operation.

During heavy or prolonged rain, we recommend taking simple precautions to help reduce direct water exposure at the connection point. This can be achieved by:

• Charging under cover where possible (for example, a carport or garage), or

• Using a charging plug cover during poor weather conditions

Charging plug covers are widely available in two common formats:

• Magnetic covers that attach to the vehicle body around the charge port

• Sock-style covers that fully envelope the connected charging plugs

These accessories are not currently sold in our store, but a quick online search for “EV charging plug cover” will return suitable options.

As with all EV charging equipment, if the connector becomes wet during use, allow it to fully dry before the next charging session.

✔ Store in the included drawstring bag in a dry, clean location
✔ Avoid long-term outdoor exposure when not in use
✔ If wet, dry fully before next use

Type 1 to Type 2 EV Charging Adapter – 32A | 7.6kW | Single Phase

Smart, Safe Charging with Universal Compatibility

Stay powered wherever you drive with the Type 1 to Type 2 EV Charging Adapter. Designed to convert a Type 1 (J1772) charging cable into a Type 2 (IEC 62196) connector, this compact adapter is ideal for households transitioning between EV types, or for sharing charging access across multiple vehicles.

Weighing just 380g and built for durability, it delivers reliable 32A single-phase charging with plug-and-play simplicity. No tools, no rewiring—just fast, seamless connection. It comes complete with a soft flocked drawstring pouch for dust-free storage and portability.

Tested to 10,000+ cycles and certified to UKCA, CE, and TÜV Rheinland standards, it’s protected with IP54 dust and water resistance, a UL94 V-0 flame-retardant casing, and a built-in thermostat to prevent overheating.

Why Choose the Type 1 to Type 2 Adapter?

⚡ Fast & Flexible Charging – Supports 16A and 32A, 7.6kW single-phase AC charging—ideal for home or public stations.

🔌 Plug-and-Play Use – Installs in seconds. No tools or special knowledge needed.

🧰 Built-In Protection – Includes thermostat for thermal safety, flame-retardant housing, and impact-tested casing.

🌧️ Weather Resistant – IP54-rated for daily outdoor use, withstanding dirt, water, and temperature swings.

👜 Travel-Ready Design – Ultra-portable with included protective pouch. Toss it in your cable bag and go.

📋 Fully Certified & Trusted – Meets IEC 62196-2 and SAE J1772 standards. Quality guaranteed with a 2-year warranty.

Whether you’re managing multiple plug types at home or switching EVs, this is your go-to adapter for safe, efficient charging on your terms.

🔹 Order now and charge with confidence—wherever the road takes you.

Yes - this is exactly what this adapter is designed to do.

It allows a Type 1 (SAE J1772) charging plug to connect to a vehicle fitted with a Type 2 (IEC 62196-2) charging inlet.

Simply connect your existing Type 1 charging plug to the adapter, then connect the Type 2 end of the adapter to your vehicle. No rewiring or modification of your existing charging equipment is required.

This makes it particularly useful if you've changed from an older Type 1 EV to a newer Type 2 vehicle, but still have a working Type 1 home charger or charging cable that you want to continue using.

Important: this adapter works Type 1 charger/cable → Type 2 vehicle only. It does not convert a Type 2 charging cable for use with a Type 1 vehicle.

It is compatible with the vast majority of EVs and plug-in hybrids fitted with a Type 2 vehicle charging inlet, but there are some known exceptions.

Based on verified compatibility information, this adapter is not suitable for:

• BMW EV and PHEV models
• Early non-European Tesla models

These exceptions arise from manufacturer-specific differences in the charging connection.

For other Type 2 vehicles, the adapter is considered compatible by default. If you're uncertain about your particular make, model or model year, contact us before ordering and we can help confirm compatibility.

In many cases, yes - and this is one of the main reasons for using this adapter.

If you already have a compatible Type 1/J1772 charging cable or tethered Type 1 charger, changing to a newer Type 2 vehicle doesn't necessarily mean that you need to immediately replace the complete charging setup.

The adapter provides the connection between your existing Type 1 charging plug and the Type 2 inlet on your new vehicle.

This can be particularly useful when changing cars or running a mixed-EV household, allowing compatible existing charging equipment to continue being used rather than replacing it solely because the vehicle connector has changed. That's also the intended use described on this product page.

No - provided your charging setup is operating within the adapter's 32A single-phase rating.

The adapter supports both 16A and 32A single-phase AC charging, up to 7.6kW.

Your actual charging speed is determined by the available power from your charger and the AC charging capability of your vehicle.

Because the Type 1/J1772 connection is single-phase, this adapter cannot convert the supply into three-phase charging. It therefore cannot provide 11kW or 22kW three-phase charging, even if your Type 2 vehicle supports those speeds from a suitable three-phase charger.

Yes - when used with compatible charging equipment and within its rated specification.

This adapter is rated for 32A single-phase charging up to 7.6kW and incorporates its own internal temperature monitoring as an additional fail-safe.

If the adapter detects an excessive internal temperature of approximately 90°C, it opens the Control Pilot (CP) circuit, signalling the charging equipment to stop charging. Once it has cooled to approximately 70°C, the CP circuit is restored and charging can resume.

The adapter is also IP54 rated, providing protection against dust and light rain during normal use. In heavy or prolonged rain, we recommend reducing direct water exposure at the adapter connection, for example by charging under cover or using a suitable EV charging plug cover.

Always stop the charging session completely before disconnecting the adapter.
